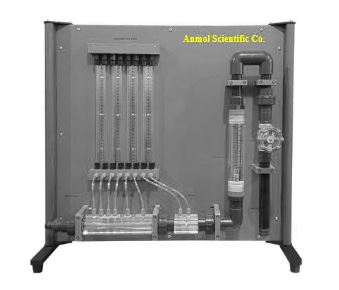

Flow Measurement Apparatus

Model: ASC-00301                         Make: PAK

Description
The equipment comprises three crucial flow measurement instruments: the Venturi meter, orifice meter, and rotameter, all extensively employed in the industrial sector. The Flowmeter Measurement Apparatus is designed for operation in conjunction with a fundamental hydraulic bench or any water supply. Its purpose is to acquaint students with standard methods for measuring the flow of an incompressible fluid. The apparatus facilitates a demonstration of flow measurement comparisons using a venturi device, orifice device, and rotameter (Variable Area Flowmeter). This comparative analysis can be extended to contrast with the flow measurement conducted on the hydraulics bench, which may utilize either gravimetric or volumetric methods depending on the specific type of hydraulics bench in use.
