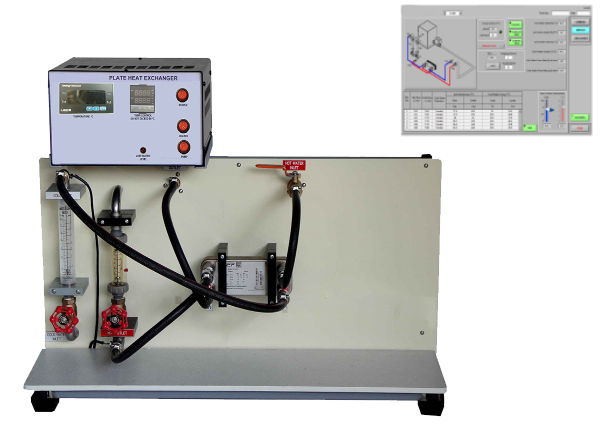

Plate Type Heat Exchanger with data acquisition

Basic experimental apparatus is used for studying the heat transfer through a plate heat exchanger under parallel or counter flow conditions.

The unit consists of a plate heat exchanger, and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control. Parallel or counter flow is by switching cold hoses valves. The unit requires outside water supply.

The microprocessor-based instrumentation is well protected in the housing. The software consists of software for system operation and for data acquisition and educational software. Is connected to the PC via USB.
