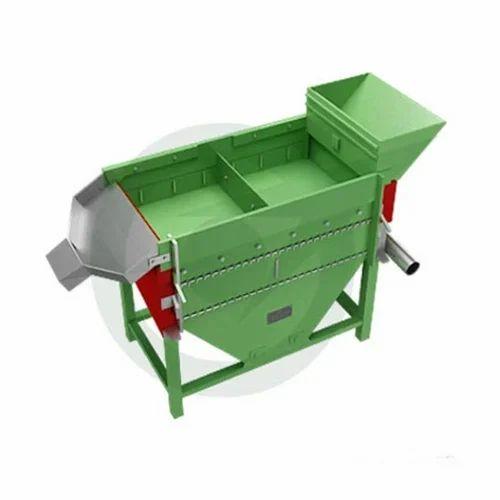

Mineral Jig Separator

This is a very simple machine works on the principle of hindered settling. This is particularly used to remove light material from the heavy one.

• The Mineral Jig has a single Hutch compartment and a reversible screen compartment.
• The rotating water valve is timed to admit water only on the plunger upstroke.
• An adjustable eccentric mechanism is used for varying the stroke of rubber diaphragm.
• The upper trash screen consists of a four mesh woven wire cloth. Two lower wedge bar screens are also furnished.
• The Jig is mounted on a steel stand which is sufficiently at higher level to collect hutch product.
